HR07 Compact series Manual Driven Hose Reel
HR07 Compact Series | Portable Manual Air Hose Reel
Space-Saving Design for High-Mobility Maintenance & DIY
The HR07 Series is an ultra-compact, manual air hose reel engineered for space-constrained environments and on-the-go professionals. Designed for manufacturing shops, equipment repair, and construction sites, it delivers a durable yet lightweight solution for mid-range hose management.
Key Performance Features
- Ultra-Compact Footprint: Minimalist design for easy transport and storage in tight workspaces.
- Foldable Handle: Reduces overall height for space-saving storage and enhanced portability.
- Rugged Steel Body: Industrial-grade impact resistance for reliable daily use in maintenance and field service.
- Stable Rubber Base: Equipped with four non-slip rubber pads to prevent sliding and ensure operational safety.
- 15 Bar Pressure Resistance: Optimized for standard pneumatic tools with a 200 PSI (15 Bar) rating.
Technical Specifications
- Max Pressure: 200 PSI / 15 Bar
- Hose Length: 15m to 30m Capacity
- Design: Foldable Manual Handle / Portable Steel Frame
- Origin: 100% Made in Taiwan
Procurement FAQ
Q: Where is the HR07 best utilized?
Ideal for workstations with limited space, mobile repair kits, and professional DIY setups where portability and quick storage are top priorities.
Q: HR07 vs. HR02/HR02DXS: What is the difference?

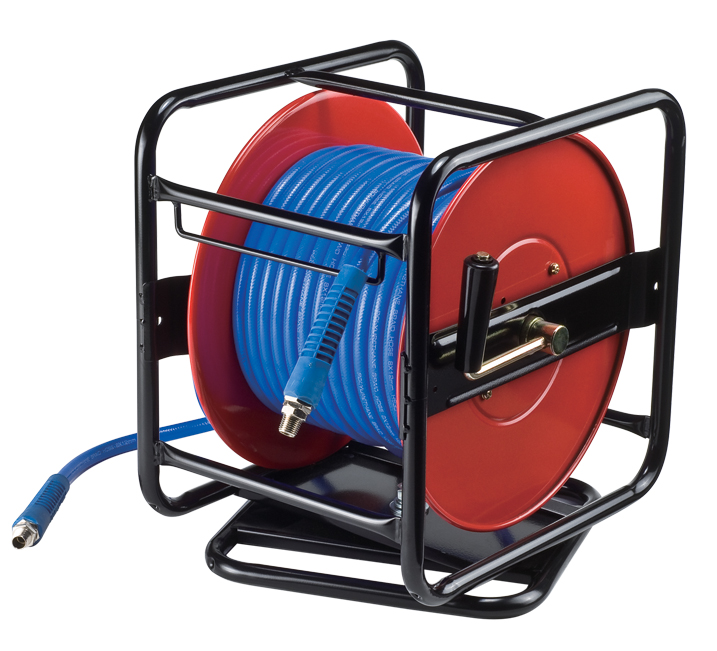

The HR07 is the most portable and budget-friendly option, featuring a foldable handle without a swivel base. The HR02 is for long-range (up to 50m) use, while the HR02DXS is the premium compact version with a 360° swivel base for automated production lines.
Q: What fittings are included?
Standard units feature a swivel male fitting to reduce hose twisting. Custom connector options are available upon request.
Q: Is OEM/ODM support available?
Yes. We offer full private labeling and tailored technical configurations for global brands.
| Model Number |
Hose I.D
(mm/ inch)
|
Max. Working Pressure
73°F(23°C)
|
Min. Bursting Pressure
73°F(23°C)
|
Hose Length
(inlet)
|
Hose Length
(outlet)
|
Hose Type |
Fitting Thread
(inlet+outlet)
|
Weight
(N.W)
|
| HR07-UB6520 | 6.5 mm(1/4") | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 1/4" + 1/4" | 5 kg |
| HR07-UB6525 | 6.5 mm(1/4") | 15 / 200 | 60 / 800 | 110 cm | 25 M | PU Braid | 1/4" + 1/4" | 5 kg |
| HR07-UB6530 | 6.5 mm(1/4") | 15 / 200 | 60 / 800 | 110 cm | 30 M | PU Braid | 1/4" + 1/4" | 5 kg |
| HR07-UB8010 | 8.0 mm(5/16") | 15 / 200 | 60 / 800 | 110 cm | 10 M | PU Braid | 1/4" + 1/4" | 5.3 kg |
| HR07-UB8015 | 8.0 mm(5/16") | 15 / 200 | 60 / 800 | 110 cm | 15 M | PU Braid | 1/4" + 1/4" | 5.3 kg |
| HR07-UB8020 | 8.0 mm(5/16") | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 1/4" + 1/4" | 5.3 kg |
| HR07-UB9510 | 9.5mm (3/8") | 15 / 200 | 60 / 800 | 110 cm | 10 M | PU Braid | 3/8" + 3/8" | 5.5 kg |
| HR07-UB9515 | 9.5mm (3/8") | 15 / 200 | 60 / 800 | 110 cm | 15 M | PU Braid | 3/8" + 3/8" | 5.5 kg |
| HR07-UB9520 | 9.5mm (3/8") | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 3/8" + 3/8" | 5.5 kg |
ㆍOpen type
ㆍHandy crank hose reel
ㆍHeavy duty reinforced steel construction with powder paint coating
ㆍSupplied with foldable handle to rewind the hose after use
ㆍ4 pcs rubber stoppers to hold the reel in place when in use
ㆍSmall in size
ㆍReasonable price
ㆍWorks with suitable pneumatic tools
ㆍUsed for construction work areas, automatic maintenance and manufacturing facilities
