HR01 Lightweight Retractable Air Hose Reel
※ Click the product image to view more specs and technical details.
・Lightweight spring-driven hose reel
・DIY, light industrial, and general maintenance work areas
・PU hose / PU braided hose, maximum working pressure 8 bar / 15 bar
・Fixed-length rewind design for reduced hose dragging and tangling
・Wall, hanging, or ceiling mounting
・Lightweight spring-driven hose reel
・DIY, light industrial, and general maintenance work areas
・PU hose / PU braided hose, maximum working pressure 8 bar / 15 bar
・Fixed-length rewind design for reduced hose dragging and tangling
・Wall, hanging, or ceiling mounting
Model :
HR01
HR01 is a lightweight spring-driven hose reel for DIY, light industrial, maintenance, and general compressed-air line management applications. It is used for hose pull-out, rewind, and workspace organization.
This model is available with PU hose or PU braided hose, with maximum working pressure ratings of 8 bar and 15 bar.
The hose reel uses a spring-driven automatic rewind mechanism. After use, the hose can be retracted to reduce hose tangling, dragging, and workspace clutter.
The reel uses an ABS plastic housing and lightweight structure. It supports wall, hanging, or ceiling mounting.
This model is available with PU hose or PU braided hose, with maximum working pressure ratings of 8 bar and 15 bar.
The hose reel uses a spring-driven automatic rewind mechanism. After use, the hose can be retracted to reduce hose tangling, dragging, and workspace clutter.
The reel uses an ABS plastic housing and lightweight structure. It supports wall, hanging, or ceiling mounting.
| Model Number |
Hose I.D
(mm/ inch)
|
Max. Working Pressure
(23°C)
|
Min. Bursting Pressure
(23°C)
|
Hose Length
(inlet)
|
Hose Length
(outlet)
|
Hose Type |
Fitting Thread
(inlet+outlet)
|
Weight
(N.W)
|
| HR01-U5075 | 5.0 mm | 8 bar | 24 bar | - | 7.5 M | PU | 1/4"+1/4" | 1.4 kg |
| HR01-UB5075 | 5.0 mm | 15 bar | 45 bar | - | 7.5 M | PU Braid | 1/4"+1/4" | 1.4 kg |
| HR01-U6560 | 6.5 mm | 8 bar | 24 bar | - | 6 M | PU | 1/4"+1/4" | 1.4 kg |
| HR01-UB6560 | 6.5 mm | 15 bar | 45 bar | - | 6 M | PU Braid | 1/4"+1/4" | 1.4 kg |
・ABS plastic housing and lightweight structure
・PU hose / PU braided hose, maximum working pressure 8 bar / 15 bar
・Spring-driven automatic rewind mechanism for reduced hose dragging, tangling, and workspace clutter
・Three mounting holes and included fixing hardware for wall, hanging, or ceiling mounting
・PU hose / PU braided hose, maximum working pressure 8 bar / 15 bar
・Spring-driven automatic rewind mechanism for reduced hose dragging, tangling, and workspace clutter
・Three mounting holes and included fixing hardware for wall, hanging, or ceiling mounting
・DIY and light industrial compressed-air line management
・General maintenance work areas and small workstations
・Pneumatic tool air supply and hose storage
・General maintenance work areas and small workstations
・Pneumatic tool air supply and hose storage
Related Products
Reinforced Polyurethane Air Hose Assemblies
Coiled Polyurethane Air Hose Assembly -Metric System

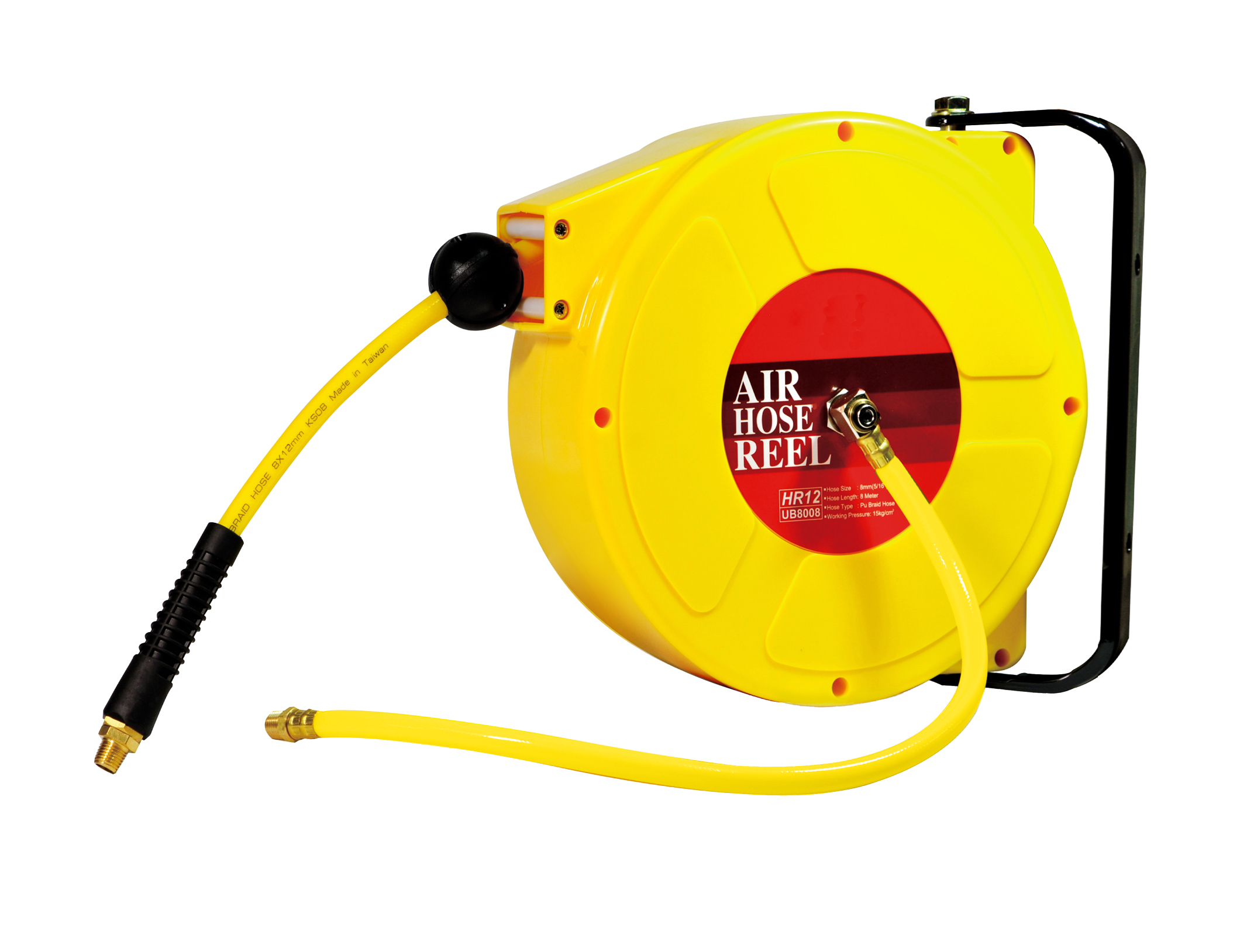

HR12 ABS-Housing Retractable Air Hose Reel

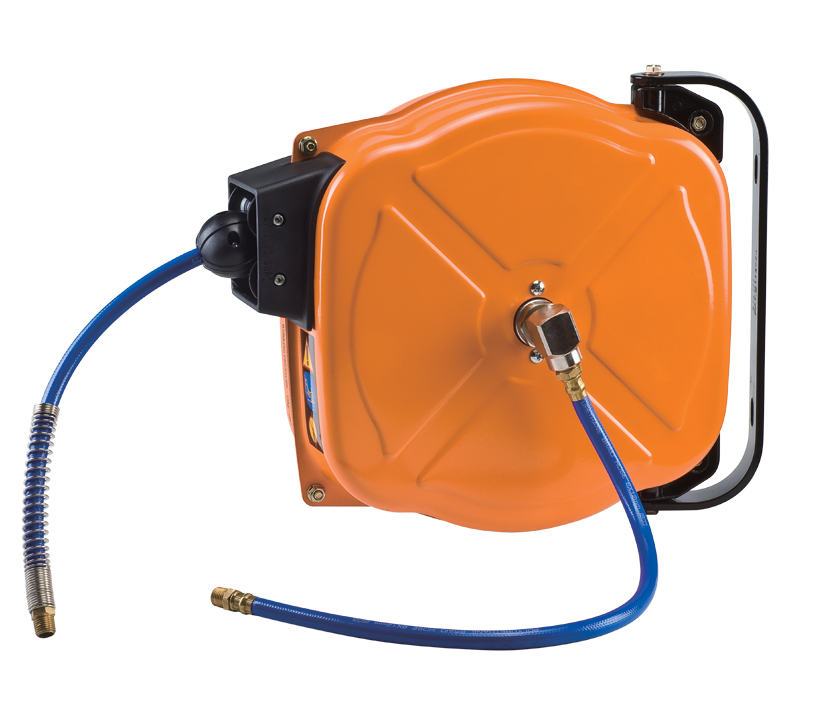

HR04 Steel-Housing Retractable Air Hose Reel
