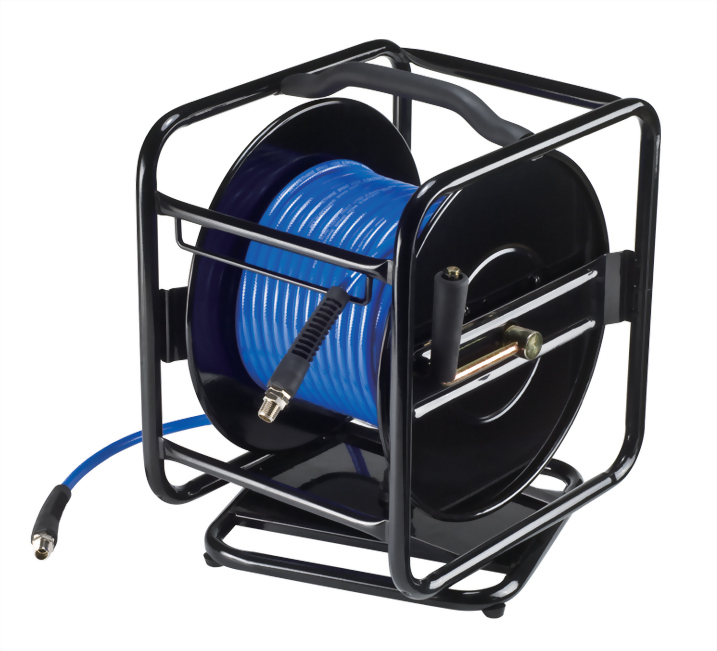

HR02DXS Compact Manual Air Hose Reel
※ Click the product image to view more specs and technical details.
・HR02-series compact manual air hose reel
・Space-limited work areas, automation equipment areas, and equipment maintenance areas
・PU braided hose, maximum working pressure 15 bar
・Manual winding design for controlled hose rewind speed
・Portable use, wall mounting, or fixed configuration
・HR02-series compact manual air hose reel
・Space-limited work areas, automation equipment areas, and equipment maintenance areas
・PU braided hose, maximum working pressure 15 bar
・Manual winding design for controlled hose rewind speed
・Portable use, wall mounting, or fixed configuration
Model :
HR02DXS
HR02DXS is an HR02-series compact manual air hose reel for space-limited work areas, automation equipment areas, and equipment maintenance areas.
Available with PU braided hose, the maximum working pressure rating is 15 bar. Hose length options range from 20 m to 40 m for compressed-air line extension and hose storage in limited-space applications.
The manual winding design allows the operator to control the hose rewind speed and storage process, reducing hose dragging and workspace clutter.
The compact steel frame structure and 360° rotating base support portable use, wall mounting, or fixed configuration for compressed-air line management where both operating range and space planning need to be considered.
Available with PU braided hose, the maximum working pressure rating is 15 bar. Hose length options range from 20 m to 40 m for compressed-air line extension and hose storage in limited-space applications.
The manual winding design allows the operator to control the hose rewind speed and storage process, reducing hose dragging and workspace clutter.
The compact steel frame structure and 360° rotating base support portable use, wall mounting, or fixed configuration for compressed-air line management where both operating range and space planning need to be considered.

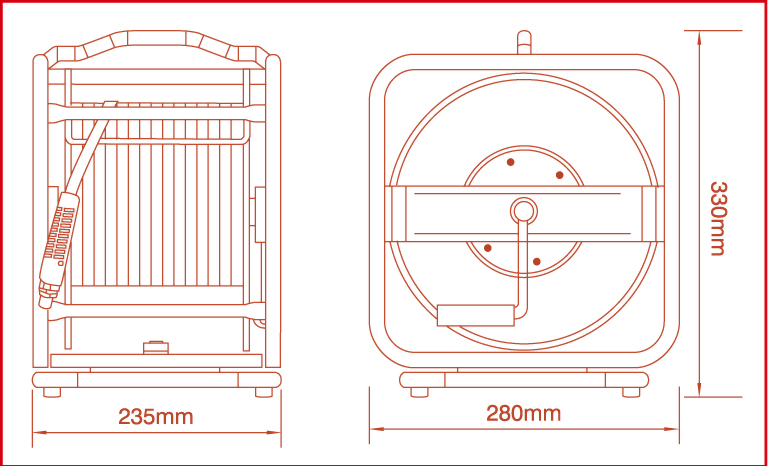

| Model Number |
Hose I.D
(mm/ inch)
|
Max. Working Pressure
73°F(23°C)
|
Min. Bursting Pressure
73°F(23°C)
|
Hose Length
(inlet)
|
Hose Length
(outlet)
|
Hose Type |
Fitting Thread
(inlet&outlet)
|
Weight
(N.W)
|
| HR02DXS-UB6520 | 6.5 mm(1/4") | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 1/4" + 1/4" | 7.7 kg |
| HR02DXS-UB6530 | 6.5 mm(1/4") | 15 / 200 | 60 / 800 | 110 cm | 30 M | PU Braid | 1/4" + 1/4" | 8.5 kg |
| HR02DXS-UB6540 | 6.5 mm(1/4") | 15 / 200 | 60 / 800 | 110 cm | 40 M | PU Braid | 1/4" + 1/4" | 9.3 kg |
| HR02DXS-UB8020 | 8.0 mm(5/16") | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 1/4" + 1/4" | 8 kg |
| HR02DXS-UB8030 | 8.0 mm(5/16") | 15 / 200 | 60 / 800 | 110 cm | 30 M | PU Braid | 1/4" + 1/4" | 9 kg |
| HR02DXS-UB8520 | 8.5 mm | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 1/4" + 1/4" | 8 kg |
| HR02DXS-UB8530 | 8.5 mm | 15 / 200 | 60 / 800 | 110 cm | 30 M | PU Braid | 1/4" + 1/4" | 9 kg |
| HR02DXS-UB9520 | 9.5 mm(3/8") | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 3/8" + 3/8" | 7 kg |
| HR02DXS-UB9525 | 9.5 mm(3/8") | 15 / 200 | 60 / 800 | 110 cm | 25 M | PU Braid | 3/8" + 3/8" | 7.5 kg |
| HR02DXS-UB1020 | 10 mm | 15 / 200 | 60 / 800 | 110 cm | 20 M | PU Braid | 3/8" + 3/8" | 9 kg |
・Steel frame structure
・PU braided hose, maximum working pressure 15 bar
・20 m to 40 m hose length options
・Manual winding design for controlled hose rewind speed
・360° rotating base for hose outlet angle adjustment
・Rubber handle for improved grip comfort during transport
・Rubber anti-slip feet for reduced sliding during floor placement
・Wall mounting or fixed configuration
・PU braided hose, maximum working pressure 15 bar
・20 m to 40 m hose length options
・Manual winding design for controlled hose rewind speed
・360° rotating base for hose outlet angle adjustment
・Rubber handle for improved grip comfort during transport
・Rubber anti-slip feet for reduced sliding during floor placement
・Wall mounting or fixed configuration
・Space-limited work areas and equipment-side configuration
・Automation equipment areas and equipment maintenance areas
・Industrial maintenance and equipment servicing
・Medium-to-long-distance pneumatic tool air supply and hose storage
・Automation equipment areas and equipment maintenance areas
・Industrial maintenance and equipment servicing
・Medium-to-long-distance pneumatic tool air supply and hose storage
