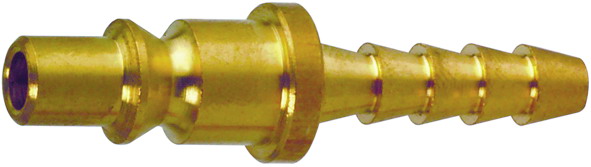

Quick Coupler AC hose barb series
Model :
AC-H
ㆍSHPI A-system quick coupler is extensively used in the U.S.A, Swiss, Belgium and Holland.
ㆍTwo touch type design for plug inserting.
ㆍTwo touch type design for plug inserting.
| Model Number | Application |
ØT
(mm)
|
ØB
(mm)
|
| AC20H | 1/4" | 7 | 4 |
| AC25H | 5/16" | 9 | 5.7 |
| AC30H | 3/8" | 10.5 | 7 |
ㆍTwo touch type
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍBrass material
ㆍMax. working pressure: 300 PSI
ㆍPneumatic tools
ㆍAir piping
ㆍAir pressure equipment
ㆍAir piping
ㆍAir pressure equipment
